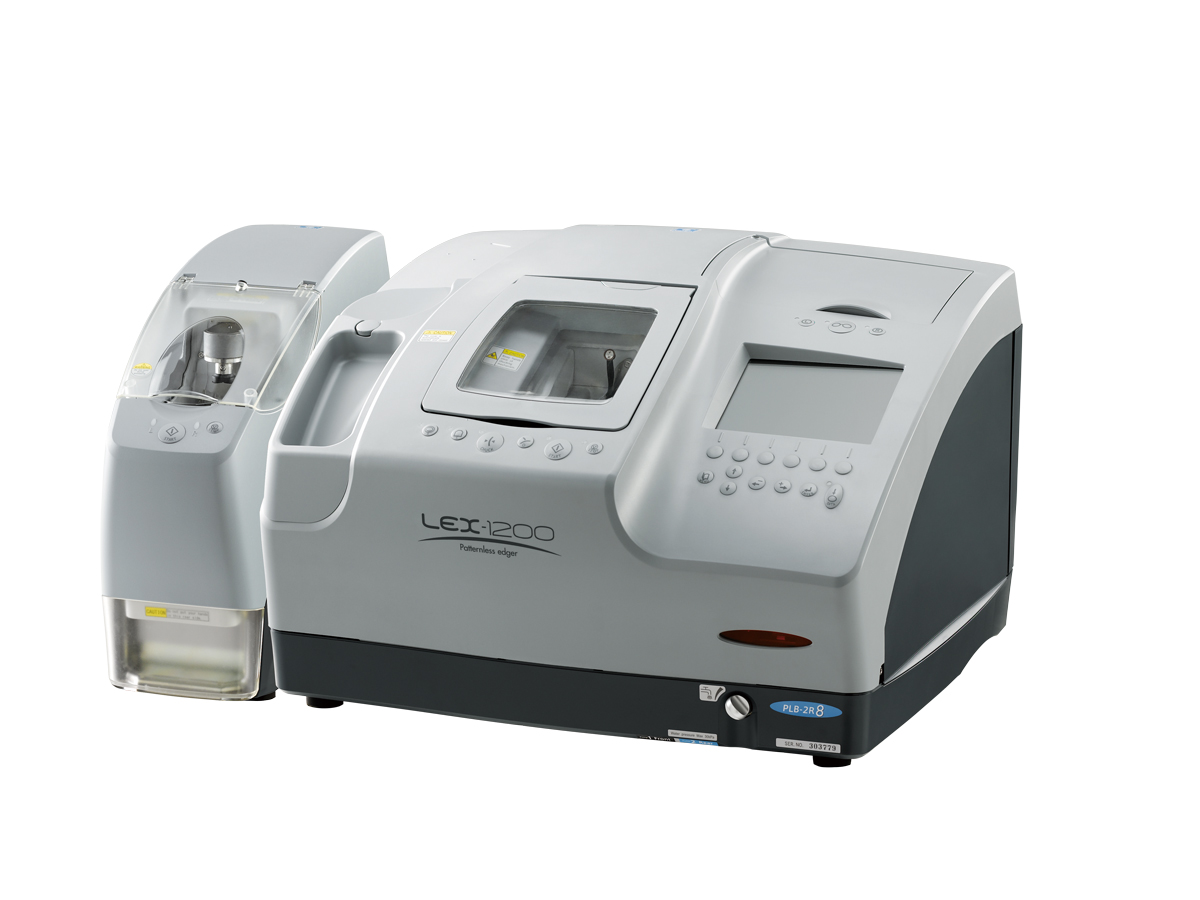

LEX Drilling “D” Lens Edger Series



Each of the systems in the LEX Drilling “D” Lens Edger Series pairs the Lex 1200 edger with the Lex Drill. With a plethora of both essential and unique edging and drilling features, ECPs can take on any organic lens material, shape and size.

The series offers three system options, each including the Lex Drill for high-precision drilling and notching.

Lex Lens Edger

  • Integrated “XtremeD” High-Curve Tracer
  • Custom Auto Mode
  • Semi-Step Mode
  • Custom Mini Bevel Mode
  • Safety Beveling
  • Auto Grooving
  • Auto Drilling
  • Notches, Slots, Twin Holes, Jewel Holes and more
  • Optional Click Mode™ software

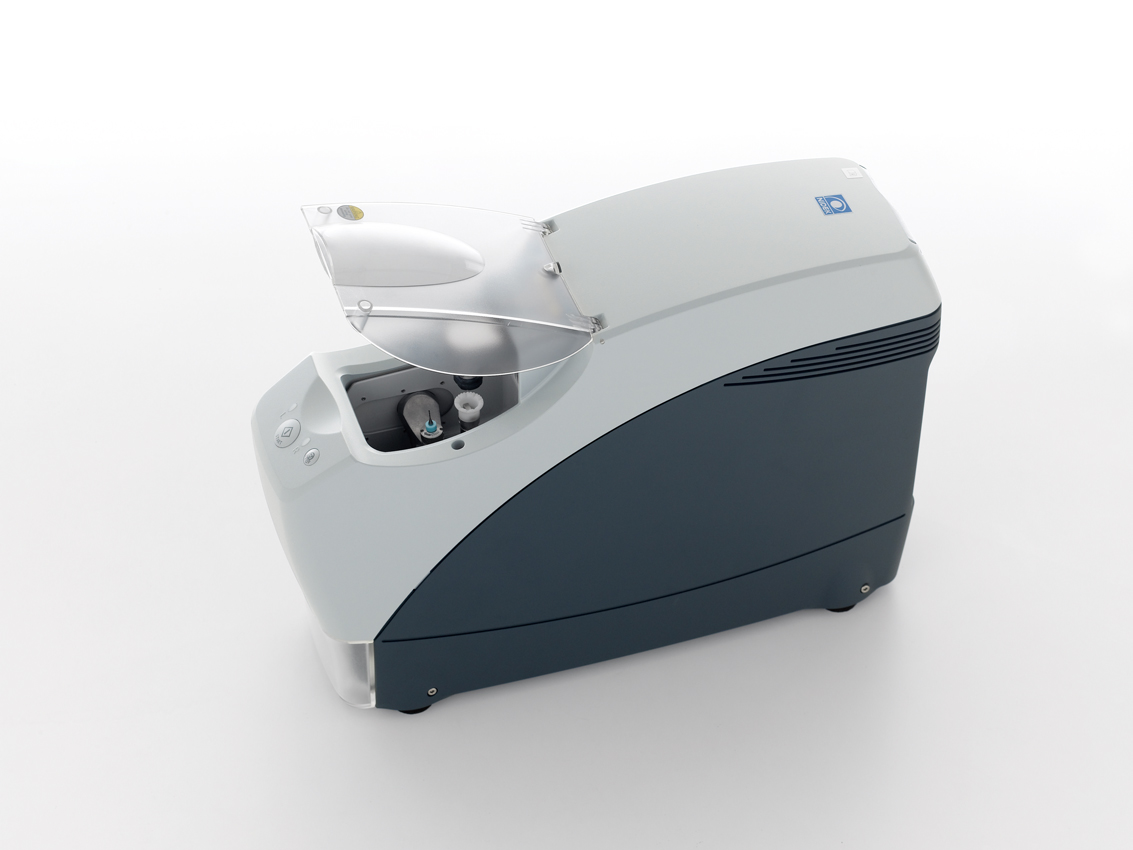

Lex Drill

  • Slim, compact unit can fit into any small lab space
  • Handles complex drilling jobs automatically at the touch of a button
  • Whisper-quiet belt-driven drill
  • Advanced stabilized chucking pressure for hole location accuracy
  • Drills twin holes, rectangular holes, notches, jewel holes and countersunk holes automatically
  • Holes are drilled perpendicular to the front bas curve
  • Custom drill angling can be adjusted from 0 to 30 degrees

LEX "D" I

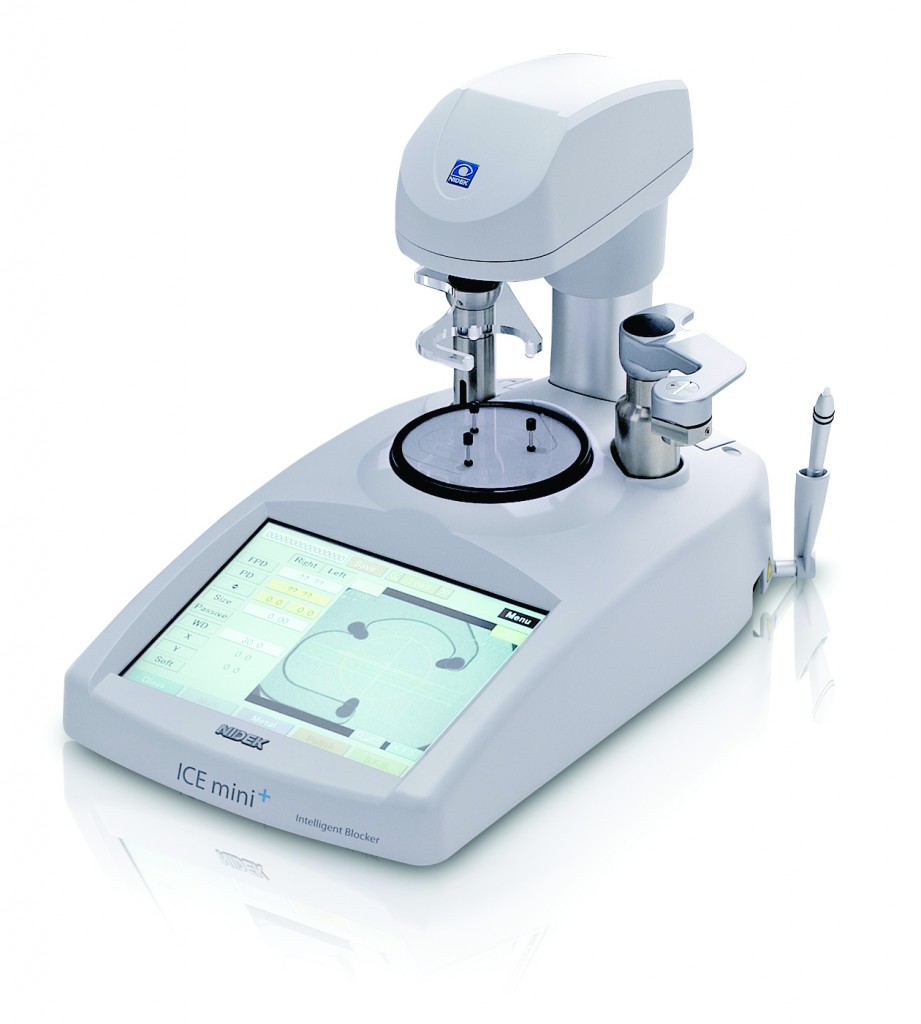

with Ice Mini+ Blocker

  • Blocker Features
    • Advanced CAD blocking
    • 3-pin oscillating lens stage with lens retaining clamp
    • Internal camera position for bifocal segment viewing
    • Easy management of job data
    • Advanced Shape Editor
    • Light diffuser for better viewing of a bifocal segment and lens edge for determining cut-out.
    • 8.4” LCD, color, touch-screen
    • Automatic manual or on-screen light intensity for better viewing of polarized lenses
    • Internal memory for traced data storage

LEX "D" II

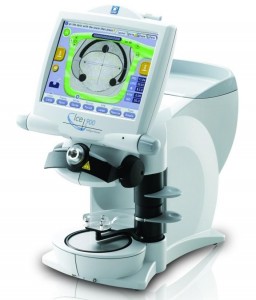

with Ice 900 Advanced CAD Blocker

  • Blocker Features
    • Advanced CAD blocking
    • Advanced, auto Integrated Shape Imager (ISI)
    • On-Screen “Wizard Tutorial”
    • Advanced Shape Editor
    • Data management for storing, searching, and recalling of traced data
    • Fast, motorized lens blocking process
    • Large, tiltable, color LCD touch-screen
    • Stabilizing lens clamp with auto lens detection
    • Aero-nautical, color-coded block system
    • “Quick Jog” dials or touch-screen option

LEX "D" III

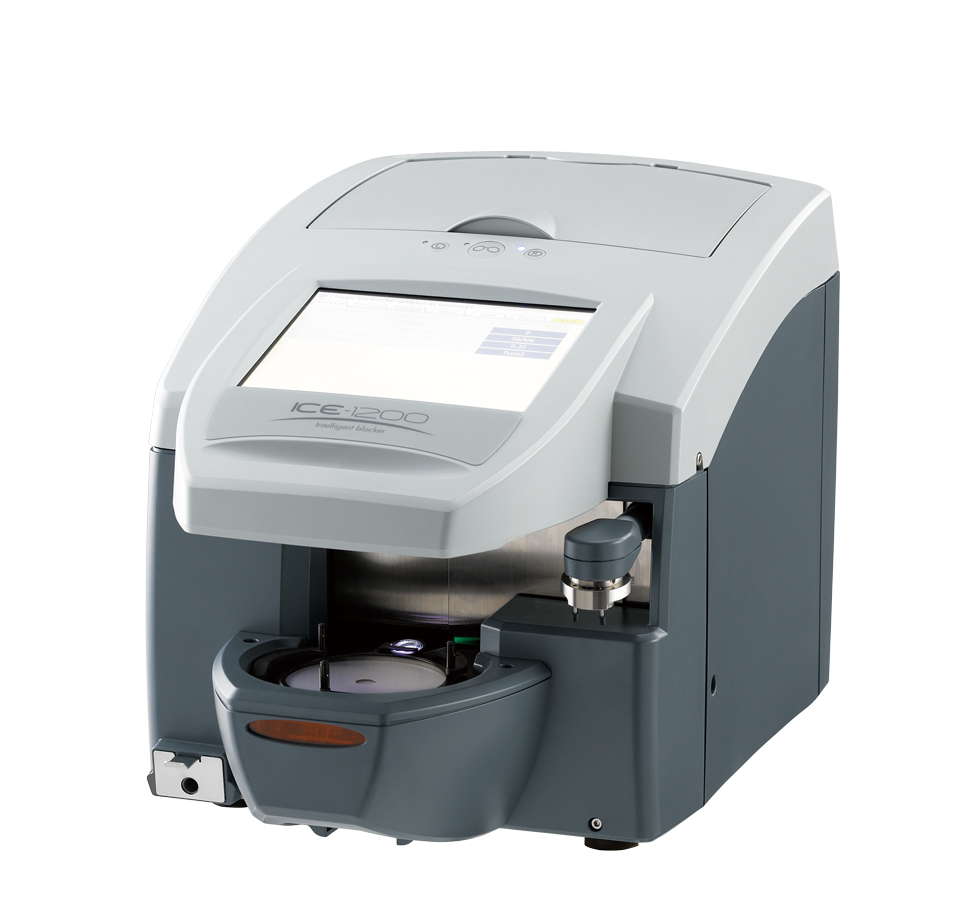

with Ice 1200 Blocker

  • Blocker Features
    • Integrated “XtremeD”
    • High-Curve Tracer
    • Advanced Shape Edit Mode
    • Auto Lens Clamp Mechanism
    • Auto Lens Meter (ALM)
    • Multi-Colored Touchscreen
    • Redesigned Blocking Module
    • RL Shape Exchange
    • Frame Angle Screen Display

Product Information

Dimensions: 20.7” W x 19.4” D x 14″ H

Weight: 99.2 lbs.

Power Supply: AC 115V, 50/60 Hz — AC 230V, 50/60 Hz

Power Consumption: 1.5 kVA
